Epox-E-Pak - protection from harsh environments!

Epox-E-Pak is a highly engineered process that increases the ability of an electric motor to withstand harsh environments.

Motor manufacturers mold windings on a production basis.  Endeavor Technologies has perfected Epox-E-Pak, making it economical to upgrade a single motor, or to duplicate or improve a molded winding supplied by a motor manufacturer.   Please keep reading to find out how it can benefit you.

Epox-E-Pak overview

Epox-E-Pak increases the ability of an electric motor to withstand harsh environments, including contamination and elevated temperatures.  Ordinarily, coils in an electric motor are protected only by a thin coat of epoxy or polyester varnish.  The varnish bonds the individual conductors into a rigid assembly, protecting the enamel on the magnet wire from the mechanical stresses imposed by current flow during operation.  Unfortunately it does little to protect against a fault caused by coolant or other contaminants.

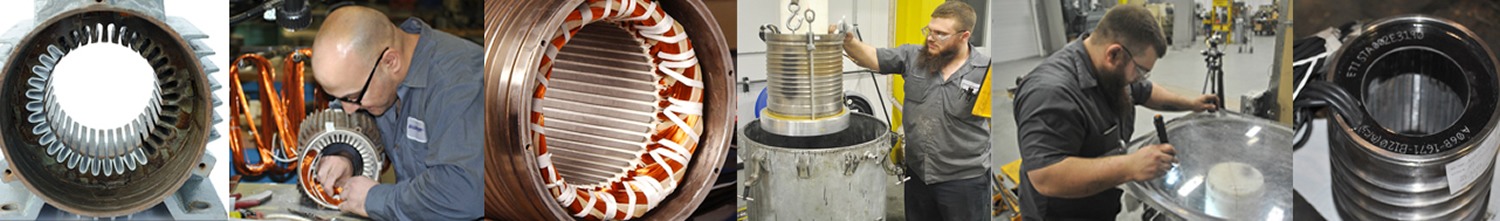

Epox-E-Pak is a carefully engineered process of molding the winding into a high molecular weight, thermal-set resin with excellent thermal shock resistance.  Epox-E-Pak offers several advantages over a traditionally processed motor winding:


• Protection against contamination.  Most built-in or integral motors fail due to contamination from cutting fluid or some other by-product of the manufacturing process.  By completely embedding the coils in an impermeable epoxy, the motor is completely protected.
• Extended insulation life.  The improved thermal efficiency achieved by a motor treated with Epox-E-Pak will extend the life of the insulation, or allow for increased power output.
• Resistance to mechanical shock or damage.  Built-in or integral motors are particularly vulnerable to damage during replacement in the field, or shipping because the coils are exposed.  Epox-E-Pak is extremely durable, and will withstand far greater impact than any caused by mishandling.
• Lower noise.  The improved internal aerodynamics translate into less windage and consequently motors that run more quietly than those processed only with epoxy varnish.

The resin is a 2-part filled epoxy, UL recognized for use up to class H (180°C).  In order to process truly void-free parts, Endeavor Technologies has taken the extra step of introducing the resin into the mold under vacuum.

Endeavor Technologies has built dozens of molds for motors supplied on machines made by Mazak, Mori Seiki, Okuma, Toyoda, Marubeni Citizen, Mitsubishi Machine Tools, OKK, Okuma-Howa, Daewoo, Motch, and is constantly developing others.

Molds in stock for:

• Mitsubishi
• Fanuc
• Okuma
• Siemens
• Indramat
• Franz Kessler
• Gamfior
• Ferrari
• Others

Mazak

• AJV40N
• e410 milling head
• e650H main spindle
• e650 milling head
• e1060 milling head
• FH480 main spindle
• FH4800 main spindle
• FH680 main spindle
• FH6800 main spindle
• FH8800 main spindle
• FJV20 main spindle
• FJV250 main spindle
• H400N main spindle
• H630N main spindle
• H800N main spindle
• Integrex 100 main spindle
• Integrex 100 milling head
• Integrex 200, 300, 400 milling heads
• MP410 / MP610 main spindle
• MP420 / MP620 main spindle
• MP630 main spindle
• MP6100 main spindle
• MP6200 main spindle
• QT100 main spindle
• QT200 / QT250 main spindle
• QT300 / QT350 main spindle
• QT400 main spindle
• SQT10 main spindle
• SQT10 sub-spindle
• SQT15 / SQT18 main spindle
• SQT15 / SQT18 sub spindle
• SQT30 main spindle
• Variaxis 550
• Variaxis 630
• Variaxis 730
• More

Mori Seiki

• M/V40
• NL2000 main spindle
• NL1500/2000/2500 live tooling spindle motor
• NL3000 live tooling spindle motor
• NT1500 live tooling spindle motor
• SH50
• SH400
• SH403

Okuma

• MX45VA
• MX45VB
• LAW IIS

Toyoda

• FA450 10K
• FA450 14K
• FA450 15K
• FA650

Many, many more!
